Module TOTP

Last modified 29 Jun 2026 09:34 UTC

Since 4.11

This functionality is available since version 4.11.

Table of Contents

Security policy configuration
Use cases
Limitations
See also

This page describes how to use the TOTP module in midPoint.

The TOTP module is used for multi-factor authentication (MFA) of users based on the Time-based One-Time Password (TOTP) algorithm. Configuration consists of two parts: module definition and authentication sequence configuration. Both have to be defined in a security policy.

Security policy configuration

The totp module cannot be the first module in the sequence. Before the totp module, midPoint needs to use an authentication module that identifies users, for example, loginForm or focusIdentification.

Table 1. Module configuration parameters
Parameter	Description	Default value
`identifier`	Mandatory. Unique identifier of the module, used in authentication sequence configuration.
`issuer`	Mandatory. Issuer name used in Key URI and displayed in the authenticator app (e.g., "Demo midPoint").
`label`	Item path or property that should be used in the Key URI as a label (e.g., "fullName"). This helps identify the account in the authenticator app, especially when a user has multiple accounts.	`name`
`algorithm`	Hashing algorithm used for TOTP code generation. Supported values are `sha1`, `sha256`, and `sha512`. Some authenticator apps support only `sha1` (e.g., Google Authenticator).	`sha1`
`digits`	Number of digits in the generated TOTP code. Supported values are `6` and `8`. Some authenticator apps support only 6 digits (e.g., Google Authenticator).	`6`
`period`	Time period in seconds for which the generated TOTP code is valid. The default value is 30 seconds, which is also the most commonly used value. Some authenticator apps ignore this parameter and support only 30 seconds (e.g., Google Authenticator).	`30s`

Example TOTP module configuration

<totp>
    <identifier>my otp</identifier>
    <issuer>local midpoint</issuer>

    <!-- following properties are optional, default values are shown -->

    <!-- item path to FocusType property used as label in auth URI -->
    <label>name</label>
    <!-- Time step in seconds. -->
    <period>30</period>
    <!--
        Number of digits in generated OTP, default is 6, supported values are 6 and 8.
        Most authenticator apps support only 6 digits.
    -->
    <digits>6</digits>
    <!-- Supported algorithms are: sha1, sha256, sha512 -->
    <algorithm>sha1</algorithm>
    <!-- Secret length in bytes, defaults are specified for all supported algorithms. -->
    <secretLength>20</secretLength>
    <!--
        The number of time steps that are allowed for the TOTP code to be valid.
        This allows for some clock skew between the server and the client.
    -->
    <window>1</window>
</totp>

The authentication sequence has to contain at least one module before the totp module that selects the correct focus (user) for TOTP authentication. This can be:

loginForm module - Selects the user based on username (if the user’s password is correct).
focusIdentification module - Selects the user based on an identifier (e.g., email) without password verification.

Typical sequences using the TOTP module:

Password authentication followed by TOTP authentication, both mandatory.
1. formLogin
  - necessity: requisite
2. totp
  - necessity: requisite
Mandatory password authentication followed by an optional TOTP authentication.

For users that have TOTP configured, TOTP authentication will be required. For others, TOTP authentication will be skipped.
1. formLogin
  - necessity: requisite
2. totp
  - necessity: requisite
  - acceptEmpty: true

Example of a complete TOTP authentication configuration

<authentication>
    <modules>
        <totp>
            <identifier>my totp</identifier>
            <issuer>Demo midPoint</issuer>
            <label>fullName</label>
        </totp>
    </modules>
    <sequence>
        <identifier>admin-gui-default</identifier>
        <displayName>Default gui sequence</displayName>
        <channel>
            <default>true</default>
            <channelId>http://midpoint.evolveum.com/xml/ns/public/common/channels-3#user</channelId>
            <urlSuffix>gui-default</urlSuffix>
        </channel>
        <module>
            <identifier>loginForm</identifier>
            <order>1</order>
            <necessity>requisite</necessity>
        </module>
        <module>
            <identifier>my totp</identifier>
            <order>2</order>
            <necessity>requisite</necessity>
        </module>
    </sequence>
</authentication>

Use cases

TOTP authentication setup (enrolling users)

The TOTP authentication setup process is initiated by the user from GUI. It can be initiated from the user self profile or the user details page.

The list of user TOTP credentials is displayed in:

Self-service > Credentials

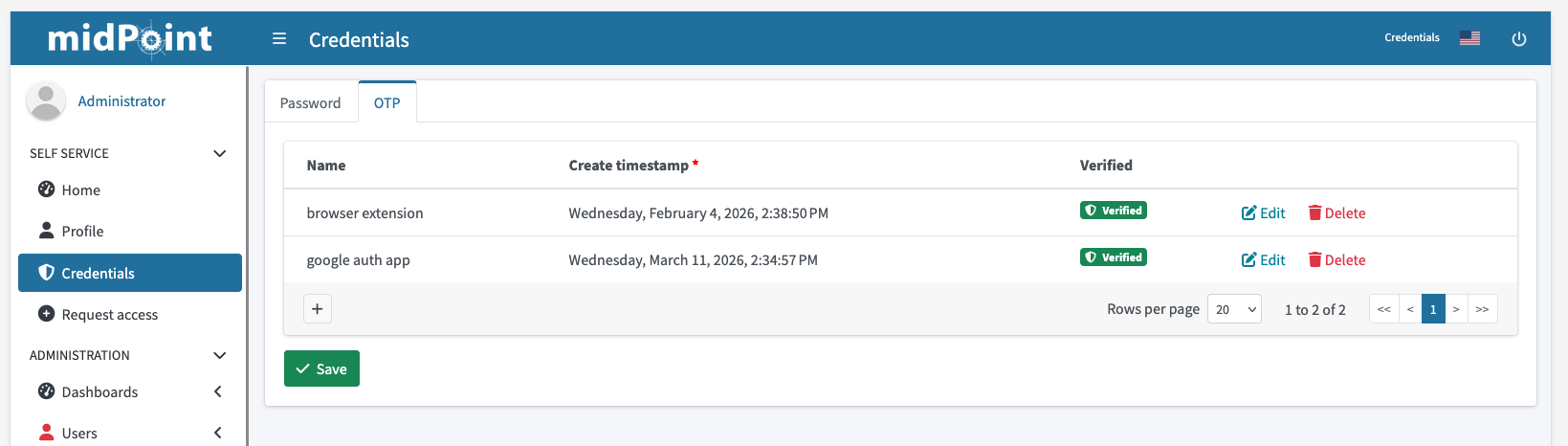

Figure 1. TOTP credentials list in user profile
User > OTP

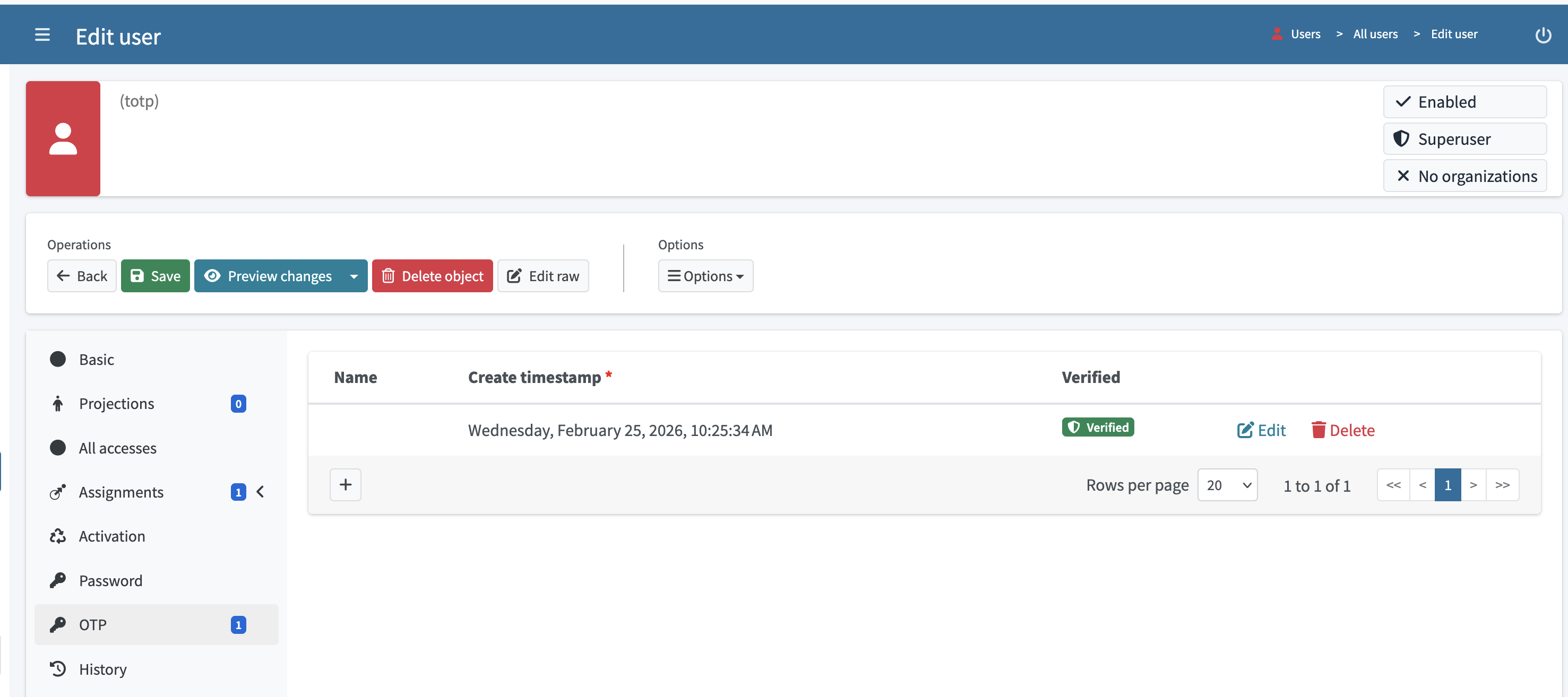

Figure 2. TOTP credentials list on user details page

The secret used for TOTP code generation is generated by midPoint. It is stored in the focus (user) credentials in encrypted form.

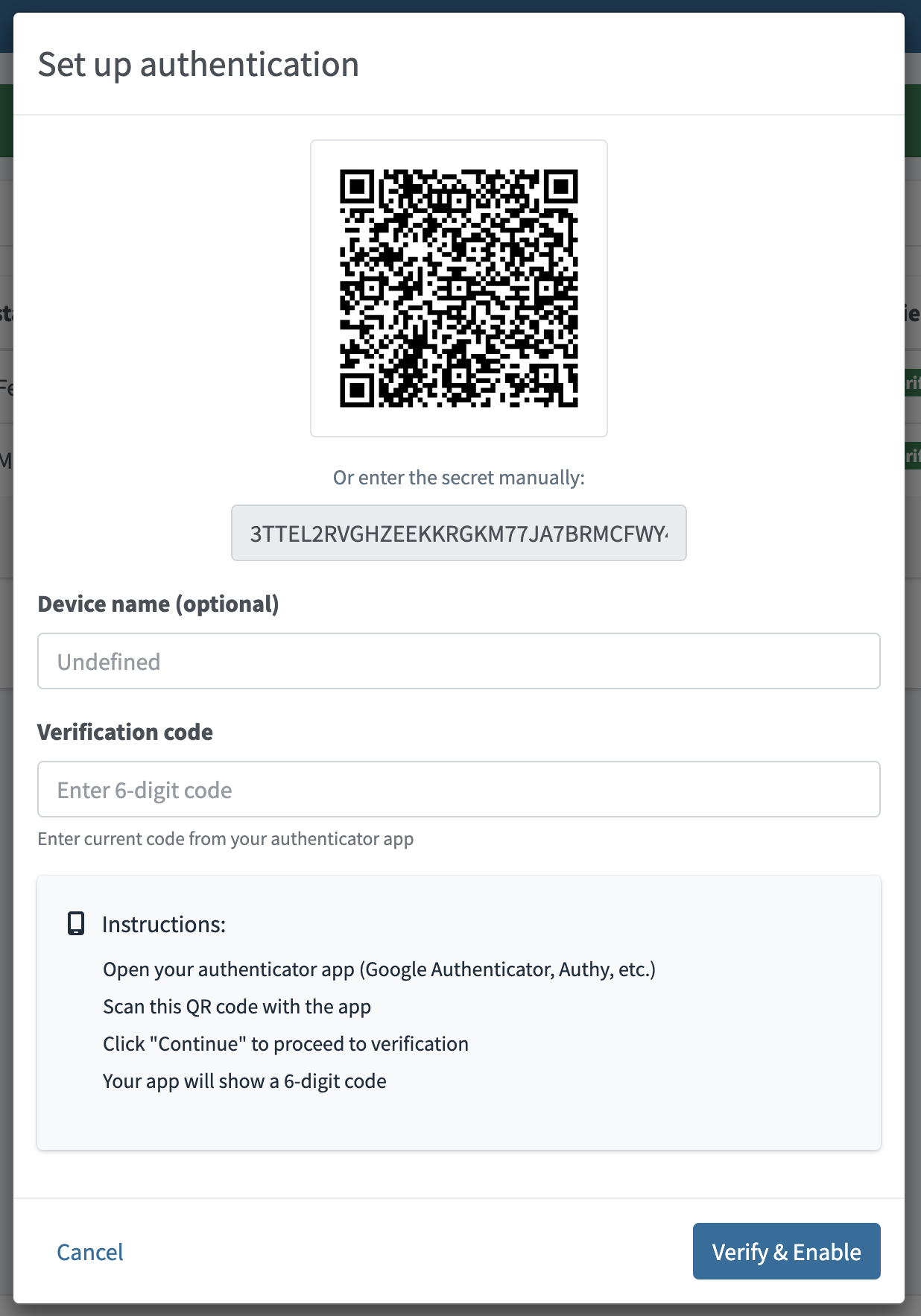

Figure 3. Dialog for creating a new TOTP credential

Example of a stored TOTP secret

<credentials xmlns="http://midpoint.evolveum.com/xml/ns/public/common/common-3"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:type="CredentialsType">

    <password>
        <!-- password data here, omitted for brevity -->
    </password>

    <otps>
        <totp>
            <!-- multiple OTPs can be stored -->
            <secret>
                <encryptedData>
                    <!-- otp secret data here, omitted for brevity -->
                </encryptedData>
            </secret>
            <createTimestamp>2025-11-11T13:54:51.673+01:00</createTimestamp>
            <verified>true</verified>
        </totp>
    </otps>
</credentials>

Changing TOTP credentials

A TOTP credential cannot be modified after it has been stored and verified. To reset TOTP authentication for a user, create a new TOTP credential and delete the unused one.

Users can only modify the TOTP credential name which is used as a description.

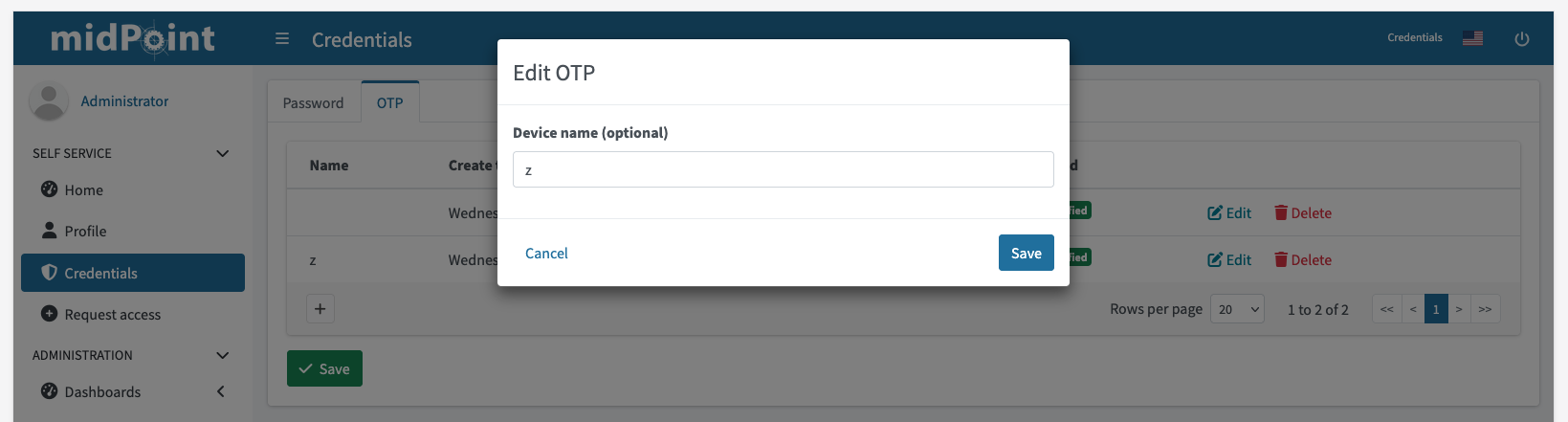

Figure 4. Edit the name of an existing TOTP credential

TOTP credentials reset

A TOTP secret cannot be modified after it has been stored and verified. To reset TOTP authentication for a user, create a new TOTP credential and delete the existing one.

Authentication using TOTP

Authentication using TOTP is initiated by user from login screen.

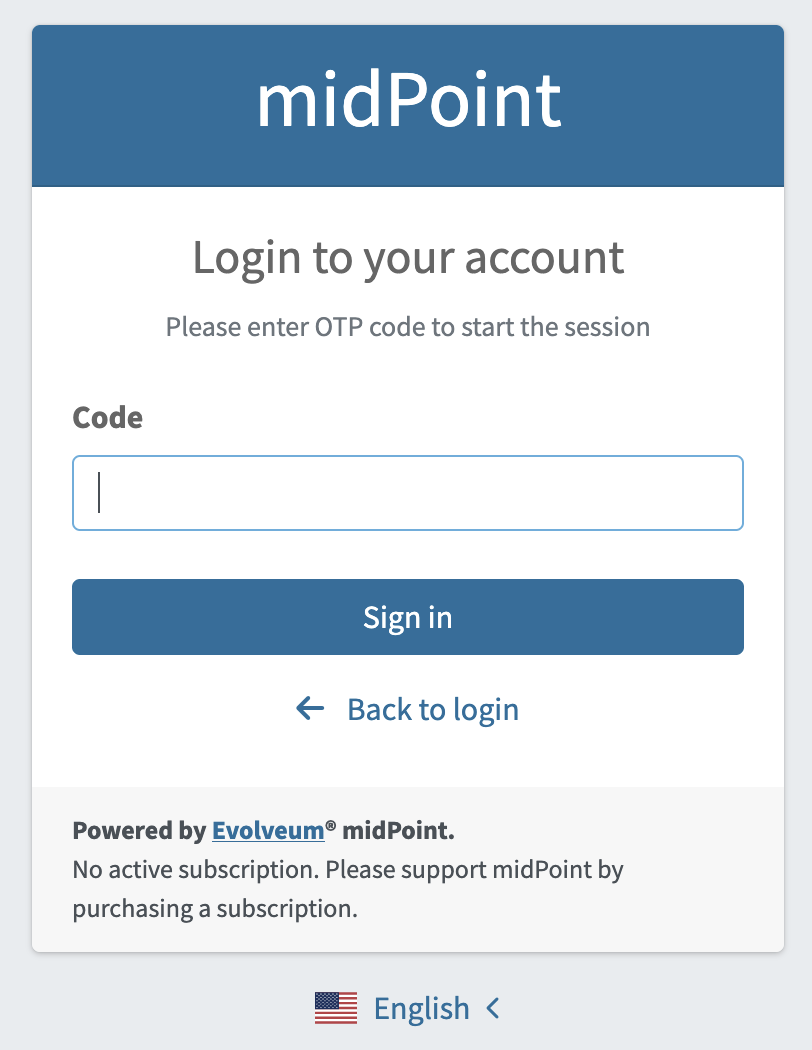

Figure 5. TOTP login page, user has to insert TOTP code generated by authenticator app

Hide OTP panel

The OTP panel is displayed in the self-service Credentials page and in the user detail OTP page.

Figure 6. OTP panel in the user details page

If you do not want to display the panel, hide it by setting its visibility to hidden.

Example hiding the OTP panel

<panel xmlns="http://midpoint.evolveum.com/xml/ns/public/common/common-3"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:type="ContainerPanelConfigurationType">

    <identifier>otp</identifier>
    <visibility>hidden</visibility>
</panel>

This configuration can be added for example to system configuration object in adminGuiConfiguration/objectDetails/objectDetailsPage for c:UserType.

Limitations

Only one TOTP module can be configured in a security policy.
TOTP will be available only for GUI authentication, specifically for the http://midpoint.evolveum.com/xml/ns/public/common/channels-3#user channel.
TOTP cannot be configured for the self-registration process.
- In the future, we may add a new option for "force-setup". This would force users to set up their TOTP credentials after login (if they do not have TOTP credentials configured yet).
